$70,000.00 Insulating Glass Production Line (Used)
Asking price is $70,000.00 – IGUs are designed to prevent heat loss through windows and doors, making them more energy efficient. The insulating layer provided by the gas between the glass panes helps to diffuse heat transfer, keeping homes warmer in the winter and cooler in the summer.
$75,000.00 – Horizontal Glass Tempering Furnace 60×100″ (Used)
For sale! Asking price is $75,000.00 If you are in the market for a used tempering oven without breaking the bank, then look no more! We have a used and currently installed 60×100″ Glass tempering furnace with glass range from 5-19mm This furnace provides exceptional results in tempering glass. With its advanced heating technology, it ensures precise heat distribution, allowing you to achieve consistent and uniform glass tempering every time.

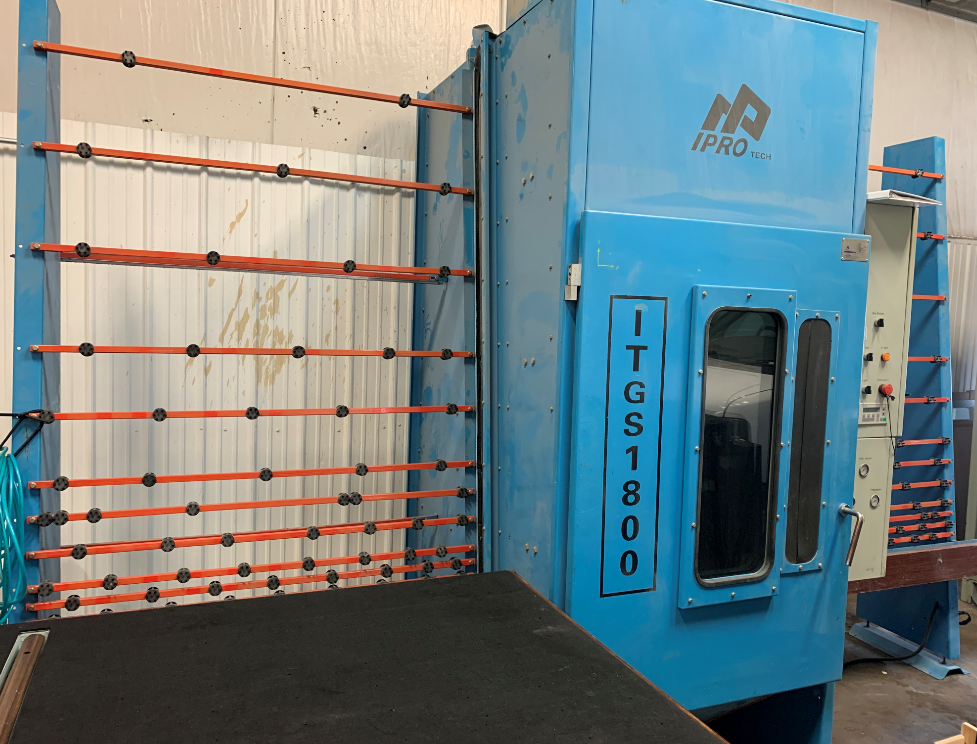

ITGS1800 Used Sandblast – (Sold)
❑ Advance speed: 1m²=3-4min
❑ Maximum workable height: 1800mm (72”)
❑ Minimum workable glass dimension: 100X200mm
❑ Glass thickness range: 2-50mm
❑ Power: 5Kw
❑ Electrical requirements: 220V, 3Ph, 60Hz
❑ Required compressed air: 84-116 PSI (dry and clean air)
❑ Compressed air consumption: 2000 liters/min or 20hp
❑ Automatic sprayer guns: 2pc
❑ Manual sprayer guns: 1pc
❑ Aspirator delivery: 600m³/h
❑ Abrasive material: Aluminum Oxide
❑ Overall dimensions: 4100(L) X1450(W) X2250(H) mm
❑ Machine weight: 1700kg
Screw Type + Air Dryer + 1320 Gallons Air Tank – (Sold)
Screw Type – Companion Air Dryer + 5 Cu.Meters ( 1320 Gallons ) Air Tank
SKAC-75S Air Compressor 75HP(55KW),
480V, 3ph, 60Hz – 0.8-1.0 MPa, (120-150 psi) – 9M3/min (320 cf/min)
Total Run time: 2525 H 06 M (Almost New)
Loading Time: 757 H 23 M
***Ideal For Autoclave
Used – Bent & Flat Tempering Furnace (Sold)
For sale- We have a 60″X120″ Bent & Flat tempering Machine. This machine was installed in Sept 2017. The machine can do both flat and bent tempering. Meaning, that if the glass runs in one direction you get flat tempered glass and in the opposite direction you can get bent glass for which you define the radius. It can temper thickness range from1/4″-3/4” glass and heat strengthen 3/16” glass.
Installation by Jordon Glass technicians.

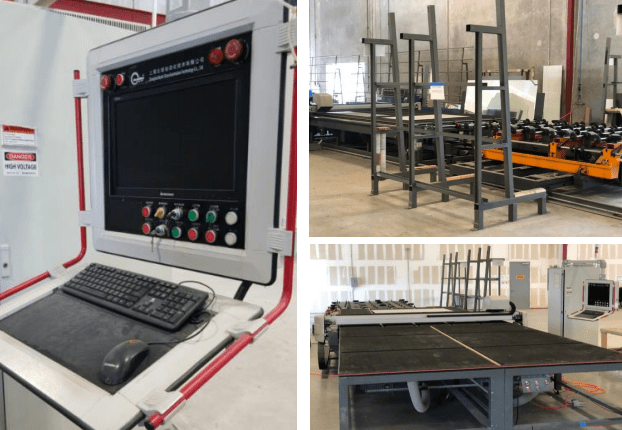

Used – Complete Cutting Line- (Sold)
Technical Features
Loader
Max. Glass sheet size 3800×2800
Min. Glass sheet size 1800×1200
Number of working stations 4
Glass thickness 2-22mm
Loading circle time L/R1<40sec; L/R1<55sec;
Cutting Machine
Max. Glass sheet size 3800×2800
Glass Thickness 2-22mm
Max. Beam moving speed 160m/min
Max. Beam cutting speed 120m/min
Max. Beam acceleration 1.25m/s2
Max. cutting head speed 120m/min
Max. Cutting head
acceleration 1.25m/s2
Break-out Table
Max. Glass sheet size 4000×3300
Glass thickness 2-22mm
No. of break-out bars 2+1
No. of blowing fan 2
Distance of blowhole <20mm
Used – Horizontal Drill – DZJ13 – (Sold)
The DZJ13can operate as a dual side driller or top-down only as
desired by the operator. When in dual mode, the bottom drill is activated first and rises using
an advanced damping control system that precisely engages the bottom side of the glass.
Bottom-up drilling depth is controlled via an operator adjusted limit switch. Once the bottom
drill has automatically released, the top drill starts and is manually lowered by the operator.
The DZJ13 offers 6 different operating speeds for varying diameters and glass thickness.
The unit comes with stop guides for repetitive drilling. The DZJ13 has a unique water
floatation system for maneuvering thin glass. This system can also be used for preparing the
drill table area and assuring there is no leftover debris that may scratch the glass. With a
table height of only 3’, the DZJ13 is ideal for loading and drilling glass of all shapes and
sizes.

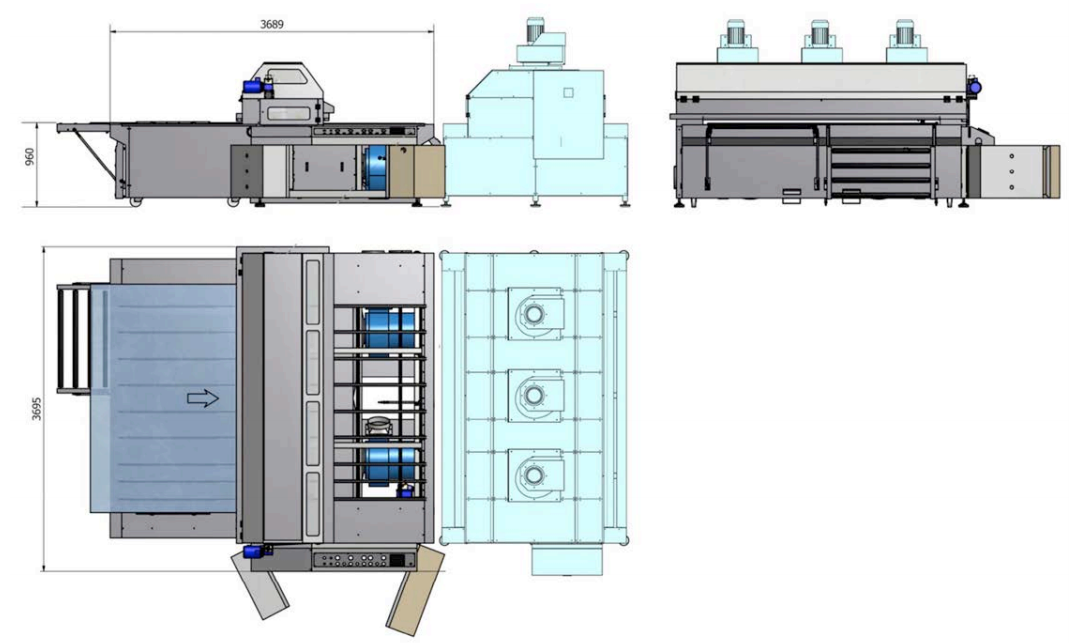

Used – Painting Line Picasso 260 + Dryer D-260 IGE – Automatic Spray Coating Mac – (Sold)
Used Painting Line Picasso 260 + Dryer D-260 IGE – Automatic Spray Coating Mac
Features:
Automatic painting system
Fast, simple and clean. Fully automatic cleaning system
Maximum profitability and increased production but reduced labor costs
The quickest system cleaning and color changing in glass industry today
80% reduction on product wasted compared to manual spraying
Intuitive software and touch screen adaptable to any language.
Different sizes available: 180cm and 260cm width
Exclusive air filter system — no extraction needed allowing the machine to be placed
anywhere in your factory.
Automatic cleaning function.
The latest sensor control technology ensuring precision spraying every time.
No product wastage — the product is recirculate allowing cleaning and refilling in
approximately 3 minutes.
Unpressurised tanks ensuring no size limitation on paint containers — increasing
production per hour.
Resin catalyst and pigment recycled to stop settlement
DJ252 Restored Glass Polisher – (Sold)
The 9-spindle DJ252 is suitable for processing straight-line glass with thicknesses ranging from 1/8” to 1 ¼”. The machine utilizes 5 wheels for bottom edging and 4 wheels for front and back 45° arris work.
(Sold) – DJM9L Used Machine
This DJM9L is a well taken care off used glass polisher and miter machine. The machine was produced back in 2014 and it is in fairly good conditions.
Lisec Cutting Table - (Sold)
Lisec – Laminated Glass Cutting Line
Refurbished DJM9L Polisher – Edger With Miter – (Sold)
This refurbished DJM9L is a fully refurbished glass edger. The machine has new motors, back/front tracks, transmission, chains, lights, control panel and more!The 9-spindle DJM9L is suitable for processing straight-line glass with thicknesses ranging from 3/16” to 7/8”. The machine utilizes 5 wheels for bottom edging and 4 wheels for front and back 45° arris work.
Sandblast – (Sold)
USED 2016 72″ high Glass Sandblasting Machine. The glass runs from left to right. The unit operates 4 blasting nozzles.
Used DJ252 Glass Edger & Miter Machine
This used DJ252 is in good working conditions.
